RGB 50PIN TFT LCD Screen 7'' 800 * 480 For Office Equipment Side LED Backlight

Name: RGB 50PIN TFT LCD Screen 7 800 480 For Office Equipment Side LED Backlight
Brand: Elite Tree
Price: 1 USD

Quality RGB 50PIN TFT LCD Screen 7'' 800 * 480 For Office Equipment Side LED Backlight for sale

Brand Name : Elite Tree

Model Number : ET700CP01

Certification : ISO9001:2015 / ISO14001

Place of Origin : China

MOQ : 100pcs

Price : Negotiable

Payment Terms : T/T, Western Union

Supply Ability : 100Kpcs~ per month

Delivery Time : 5days for sample and 20-25 days for mass production

Packaging Details : In anti-statics bag packed in carton or according to the customer's requirement

Display Type : TFT LCD Screen 7'' 800*RGB*480 with CTP

Viewing Direction : 6 o'clock/optional

Operting Voltage : 3.3V

Backlight : White 14 LEDs

Interface : RGB888

CTP Controller : FT5426

Contact Now

TFT 7'' 800 * 480 Resolution 50PIN TFT LCD Screen RGB WIth Capacitive Touch Screen

TFT LCD Screen

Product Information

Display Type	7'''' TFT LCD Screen with Capactive Touch Panel
Display format	800 * 480 Dots
Active area	154.08*85.92 mm
IC package	COG
IC or equivalent	HX8264 / HX8664
Interface	RGB888
Touch panel optional	Yes
Viewing direction	6:00
LED backlight color	White
Power supply(typ)	3.3V
Backlight current (typ)	side, white Led(27PCS)
Operating temp	-20ºc~70ºc
Storage temperature	-30ºc~80ºc
Brightness	450cd/m2
If accept customized	Yes
RoHS compliance	Yes

Our advantages

1) Small quantity accepted
2) Competitive price and short lead-time and best service
3) ROHS/ ISO 14001 and other related certificates are available
4) Reply the mail within 24 hours

Application

Autoelectronics, 3D&Shutter, Meters & Instrument, Telecommunication,

Domestic electrical appliance(Household appliance), Fuel dispensers,

Office equipment, Medical &health equipment, Business related facility, Education electronics, etc.

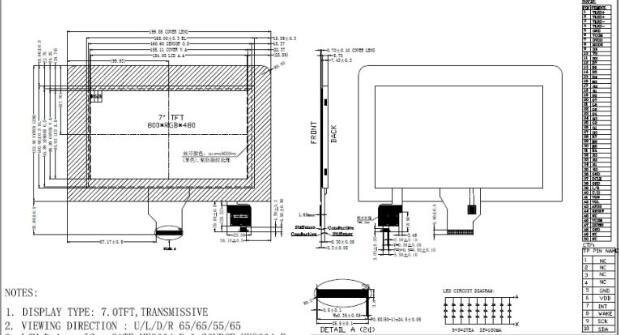

Product Drawing

RGB 50PIN TFT LCD Screen 7'' 800 * 480 For Office Equipment Side LED Backlight
